Shijiazhuang Laiye Imort& Export Trading Co., Ltd. is one of the leading manufacturers and suppliers of z2s series pilot operated check valve in China, also supports customized service. If you're going to wholesale high quality z2s series pilot operated check valve made in China, welcome to get pricelist from our factory.
Product Overview

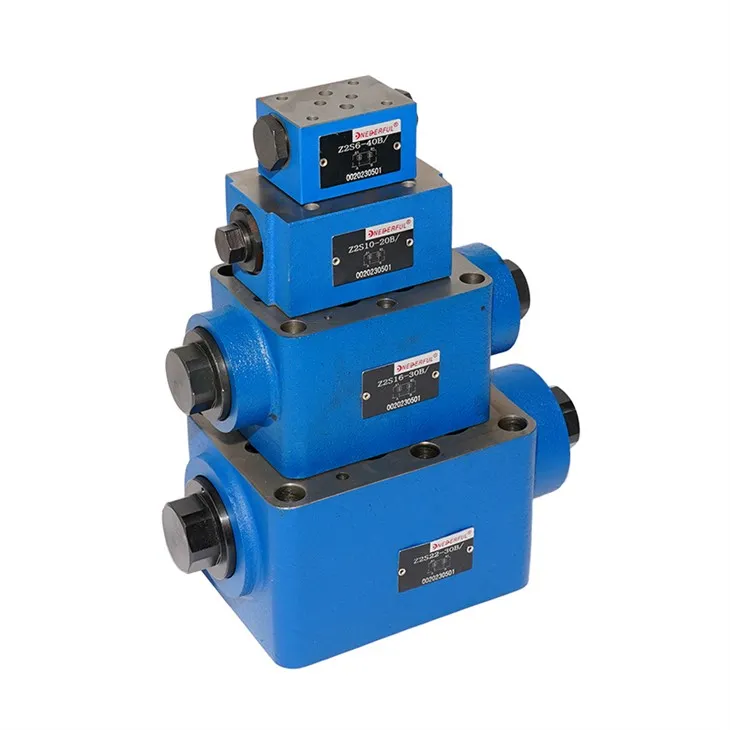

The Z2S Series pilot operated check valve is engineered for reliable load holding and leak-free blocking in hydraulic circuits. Unlike standard check valves, this pilot-to-open design gives you positive control over reverse flow – only when pilot pressure is applied. Ideal for mobile machinery, industrial presses, and actuator locking applications where unexpected movement is unacceptable.
Products Description
Technical Parameters (Typical Values)
| Parameter | Value |
|---|---|
| Max operating pressure | 350 bar (5075 psi) |
| Max flow rate | 60–400 L/min (depending on size) |
| Pilot pressure ratio | 3:1 or 6:1 (optional) |
| Crack pressure (standard) | 1.5 bar |
| Temperature range | -20°C to +80°C |
| Port sizes | G1/4″ to G1″ / SAE-6 to SAE-24 |
Onederful® Hydraulic
Company Introduction
Shijiazhuang Laiye Import & Export Trading Co., Ltd (subsidiary of Hebei WenDefu Hydraulic Technology Co., Ltd) has been a high-tech enterprise since 1988. We focus on R&D and production of hydraulic valves including directional, pressure, flow valves and the Z2S Series pilot operated check valve. Our technical team includes industry senior experts as consultants.
40+
Years in business
More than 40 years pressure valve components experience
200+
Employee
Professional hydraulic valve production management team of more than 200 people
10000+
Container
Annual supply of more than 10,000 container of specialized products
20+
Countries
Supplying Laiye products to customers in more than 20 countries
Services We Provide
01
OEM service
Provide your drawing and requirements
02
Packing options
Carton for small pieces, export-grade plywood case for large pieces
03
Shipping methods
Sea freight, air freight, DHL/FedEx/UPS
Certifications
Common Problem
What is the pilot pressure required to open the Z2S Series pilot operated check valve?
It depends on the pilot ratio and the pressure trapped on the B port. For a 3:1 ratio, pilot pressure = (trapped pressure × 0.33) + spring setting. Typically 10–30 bar is sufficient.
What is the leakage rate in the closed position?
Zero measurable leakage with metal seat (better than 5 drops per minute for soft seal). Compliant with ISO 6403.
Are OEM modifications available (different pilot ratio, special coating)?
Yes. Just email your drawing and specifications. We can adjust pilot ratio (2:1 to 6:1), add zinc-nickel plating, or supply with Viton seals for high temperature.
What is the warranty period?
12 months against B/L date. We also provide technical support beyond warranty.
