Directional Hydraulic Control Valve: Sizing for 100 L/min Systems
This article looks at a practical selection issue in hydraulic systems: when a directional control valve is sized below the system's actual flow demand, response feels sluggish even after pump pressure is increased. It outlines how internal passage size affects performance in the 70–110 L/min range, and highlights the DCV100 series as one option for 100 L/min systems with up to 350 bar operating pressure.
A common inquiry in valve selection goes like this: system flow sits just over 60 liters, under 80, and the current valve group feels sluggish. The question is whether a larger size will fit, or whether it is overkill.
Part of the difficulty is that flow and pressure problems look similar on site. Insufficient flow means slow action, while insufficient pressure means weak action. These are often confused. A higher-pressure pump may be installed, yet the action stays slow, because the valve's internal passage was the bottleneck.
The solution

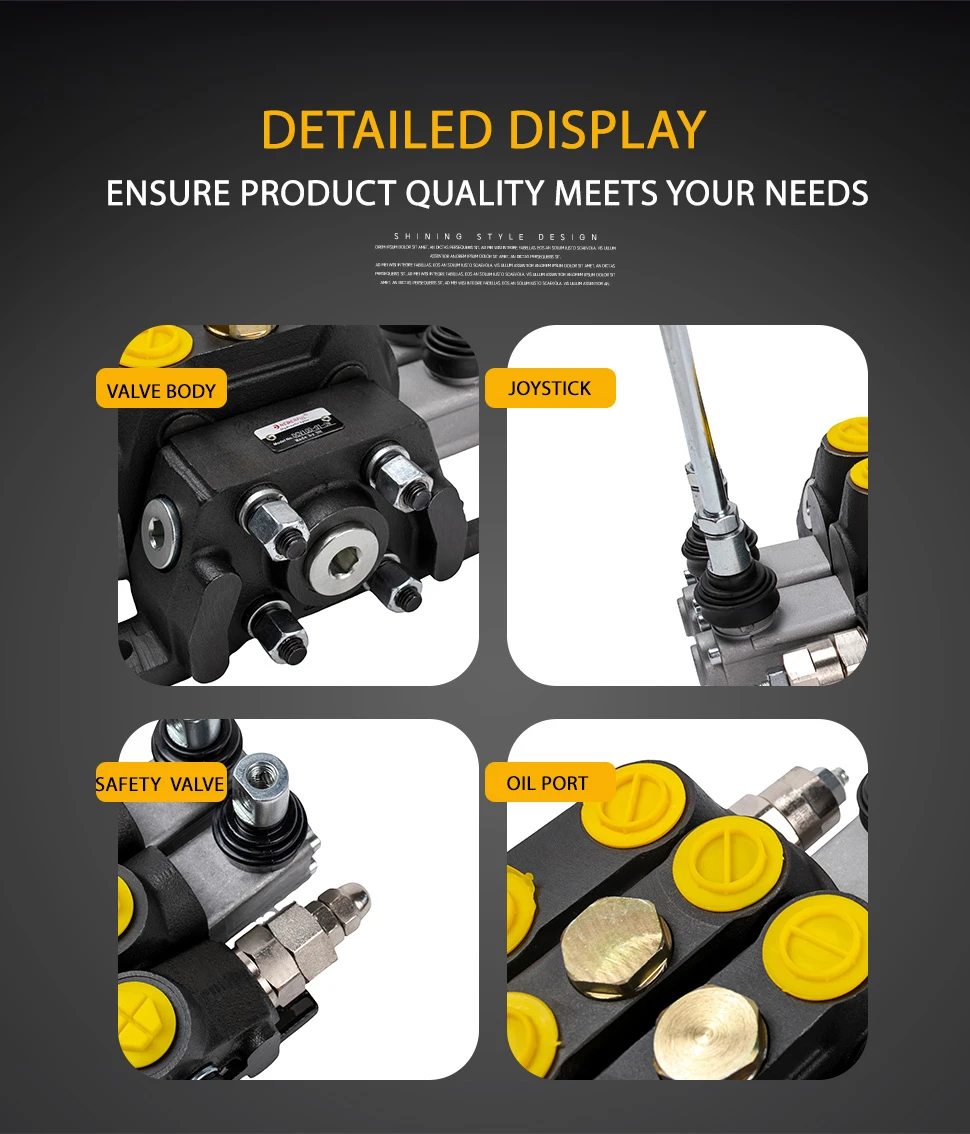

The DCV100 Series Sectional Directional Valve from Laiye is sized for this range: 100 L/min nominal flow, up to 350 bar operating pressure, and 1 to 12 sections.
View DCV100 Series Sectional Directional Valve
Key specifications:
Nominal flow: 100 L/min
Operating pressure: 350 bar (35 MPa)
Section count: 1 to 12
Internal leakage: within 15 cc/min at 160 bar, 50°C
Ambient temperature: -40°C to +80°C
Compared with the DCV60, the DCV100 has larger internal passages, allowing more flow at the same pressure drop. For equipment that has always felt short on response, replacing the valve group can help without changing the whole piping layout.
Where it fits
The DCV100 is mainly used in small wheel loaders, excavator attachments, combine harvesters, presses, marine deck machinery and lift platforms. These applications share a need for manual control of multiple functions within a moderate flow range. Because the valve is sectional, only the required number of sections needs to be installed.
About Laiye
Laiye is a hydraulic valve brand under Hebei Onederful® Hydraulic Technology, founded in 1988, with more than 35 years of experience in hydraulic valve manufacturing. Products are exported to more than 20 countries and regions. Each valve is tested before shipment, and OEM service is available with drawings and specifications.
