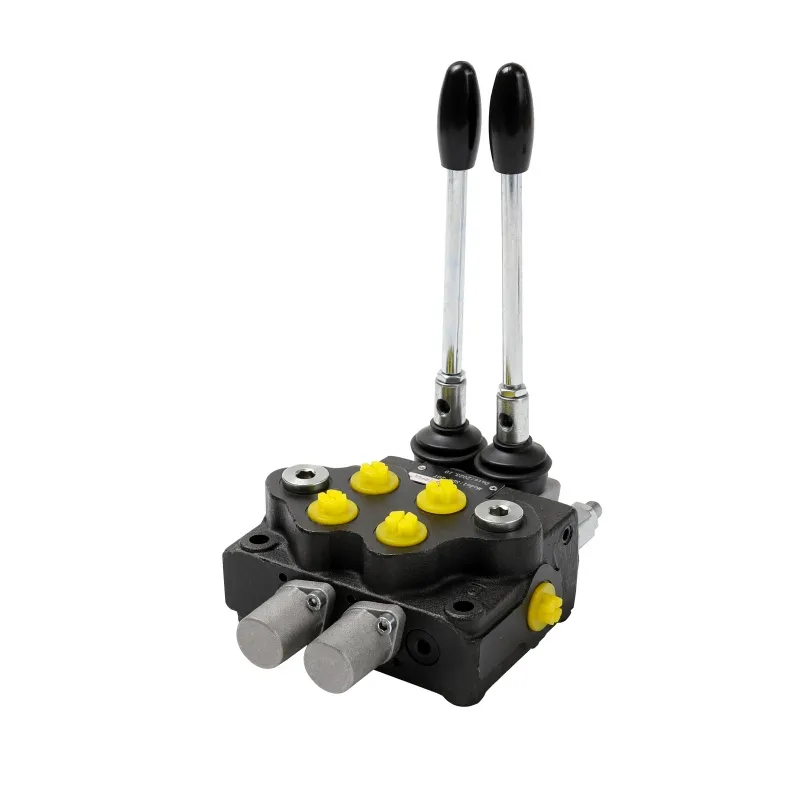

Shijiazhuang Laiye Imort& Export Trading Co., Ltd. is one of the leading manufacturers and suppliers of 2sd5 manual directional control hydraulic valve in China, also supports customized service. If you're going to wholesale high quality 2sd5 manual directional control hydraulic valve made in China, welcome to get pricelist from our factory.
-
Lever Feel
The most common complaint about cheap manual valves is stiff, notchy lever action. The operator has to yank the lever, which makes fine control impossible. Our SD5 uses precision-ground spools (Ra 0.2 µm finish) and a roller cam mechanism instead of a sliding cam. The result: smooth, progressive lever feel from center to full stroke.
-
Detent vs. Spring Return
Spring-centered valves return to neutral automatically when the operator lets go. Use these for momentary functions like lifting a loader arm – the operator holds the lever until height is reached, then releases and the valve centers.
Detent valves lock in position. Use these for functions that stay on, like a log splitter wedge that must stay forward while the operator handles the log. The detent is adjustable from the factory; we set it to about 20 N of pull-out force (firm but not tiring).
-
Float Position
Some spools offer a fourth position (beyond A, neutral, B) called "float." In float, both working ports connect to tank, allowing the cylinder to move freely. This is essential for loader buckets that need to follow ground contour. Specify "float spool" when ordering – not all SD5 spools have it.
Real Production process

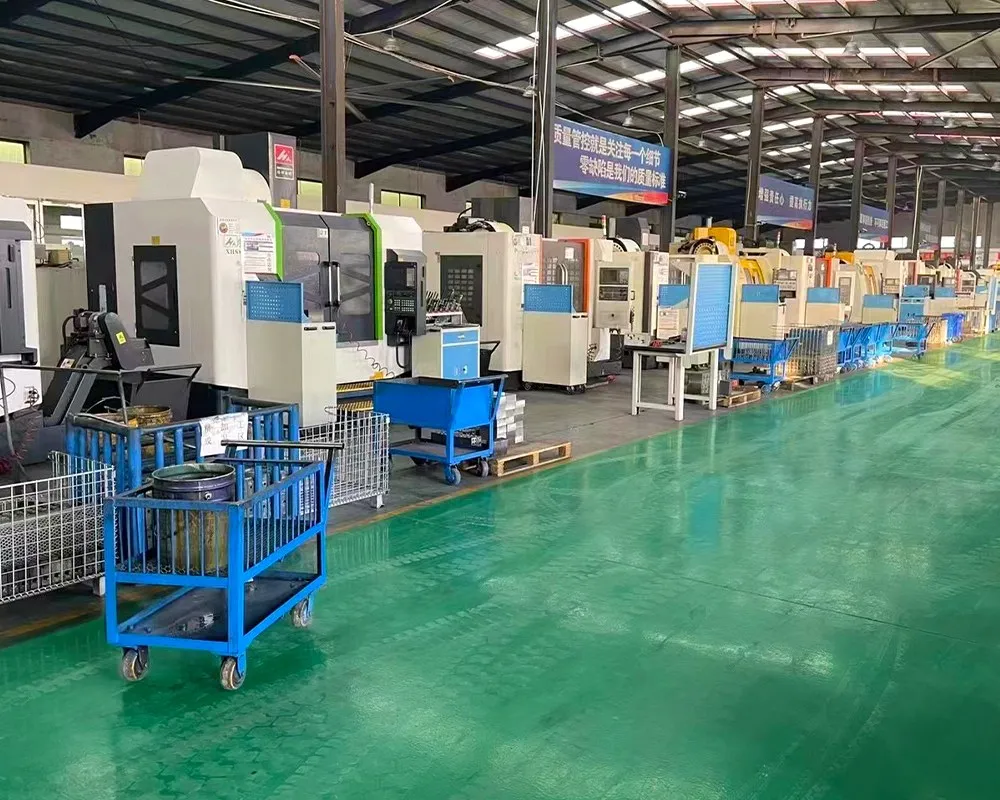

Our Shijiazhuang plant (Hebei Wendefu) completes full in-house production of SD5 valves,
- Casting: HT250 gray iron, batch strength & hardness tested.
- Machining: High-precision machining for bores and threads.
- Spool processing: Precision grinding, chrome plating (DLC coating optional).
- Lapping: Manual lapping to control fitting clearance.
- Assembly: Full component assembly and fine adjustment.
- Testing: Every unit undergoes cycle test, performance & leakage test. Each valve is issued an individual test report.
Where the SD5 Actually Works
Compact Construction Equipment
- Small excavators (1.5-4 ton) – for blade, boom swing, and auxiliary circuits
- Mini loaders and skid steers – lift and tilt functions
- Backhoe loaders – stabilizer legs and outriggers
Agricultural Machinery
- Small tractors (under 50 HP) – front loader and rear remote valves
- Hay balers and wrappers – tying and ejection circuits
- Orchard sprayers – boom control
The SD5 is not for high-flow applications (over 40 L/min continuous) or very high cycle rates (over 30 cycles per minute).
For those, move up to the SD8 series (80 L/min).
Material Handling
- Forklifts (under 3 ton) – mast tilt and side shift
- Pallet stackers – lift and lower
- Aerial work platforms – boom extension and platform leveling
Specialty Equipment
- Log splitters (detent spool for wedge hold)
- Snowplows (float position for blade)
- Street sweepers – brush control and hopper dump
Common Problem
Q1: Can I add more spools to my existing SD5 monoblock valve later?
No. A monoblock valve is cast as a single piece. You cannot add sections. If you need more functions, you must replace the entire valve. Order the correct number of spools upfront. We offer 1 through 7 spool versions – stock and ready to ship.
Q2: What is the difference between spring-centered and detent spools?
Spring-centered: the lever returns to neutral automatically when released. Use for momentary functions (lift, lower, crowd, dump). Detent: the lever locks in position until manually pulled back. Use for functions that need to stay on (log splitter wedge, auxiliary motor, continuous rotation). We offer both types, and you can mix spool types in the same valve.
Q3: My SD5 valve leaks internally. How much is acceptable?
In neutral position (no lever actuated), internal leakage from P to A or P to B should be under 10 ml/min at 250 bar. If you see cylinder drift faster than 5 mm per minute at rated pressure, the spool is worn. Possible causes: contaminated oil (silica or iron particles), wrong viscosity (too thin), or worn spool coating. Replace the spool or the entire valve. We sell individual spools separately.
Q4: The lever is very stiff. What can I do?
First, check system pressure. Lever force increases with pressure. If pressure is normal (under 315 bar), the spool may be binding from debris. Remove the end cap and push the spool by hand. If it binds, flush the valve with clean diesel. If still stiff, the spool or bore may be damaged. Our SD5 uses a roller cam mechanism; cheap alternatives use a sliding cam that wears and becomes notchy. If you have our valve and it is still stiff after 6 months, contact us – we will inspect and replace if defective.
