Product Overview

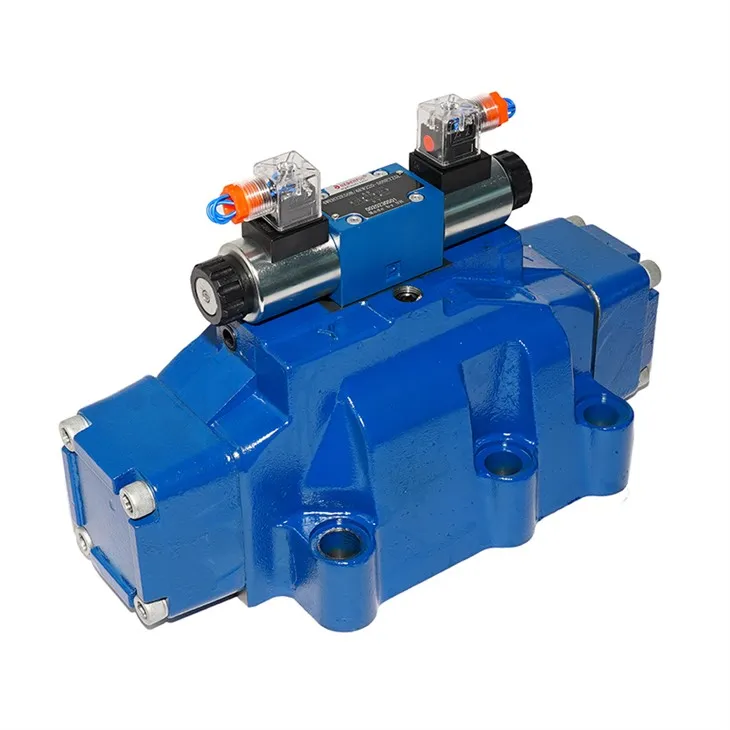

The 4WEH32 hydraulic solenoid valve is a high-performance wet-type directional valve designed for demanding hydraulic systems. With 35 years of pressure valve component expertise, Onederful® Hydraulic delivers this series to handle flows up to 600 L/min and pressures up to 350 bar – making it a solid choice for heavy-duty machinery where failure is not an option.
Every 4WEH32 solenoid valve we ship goes through at least ten in-house inspections before leaving our manufacturing center. No shortcuts. No guesswork.
Products Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Nominal size | NG32 (32mm) |
| Max operating pressure | 350 bar (P, A, B ports) |
| Max flow rate | 600 L/min |

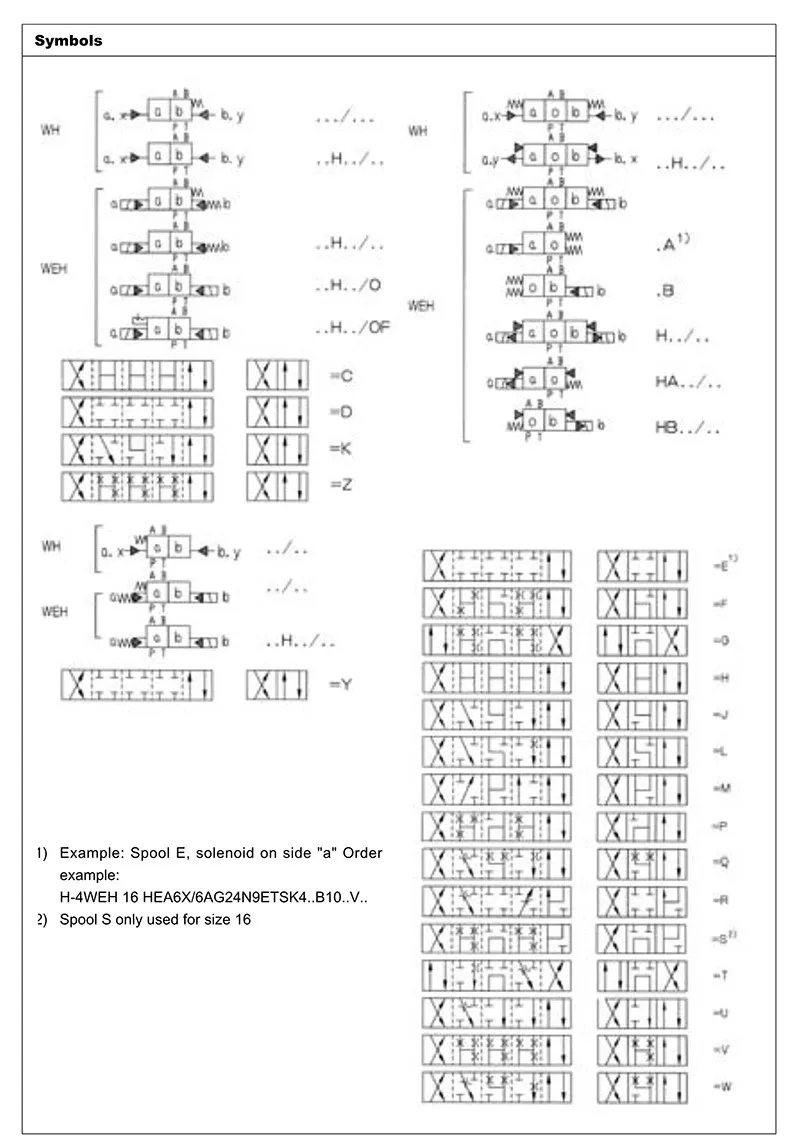

| Spool type | 3-position, 4-way (with various spool symbols: C, Y, E, etc.) |
| Actuation | Wet-pin DC solenoid with optional AC/DC rectifier |
| Valve body material | High-strength cast iron (GGG) |
| Internal spool | Hardened and ground steel |
| Seal material | NBR / FKM (optional for high-temp) |
| Port connection | Subplate mounting to ISO 4401 |
One-stop Hydraulic Valve Factory in China
Founded in 1988, Shijiazhuang Laiye Import & Export Trading Co., Ltd (part of Hebei WenDefu Hydraulic Technology Co., Ltd.) started as a small workshop. Today we run a 200-person professional team focused solely on pressure valve components – including the 4WEH32 solenoid valve and related directional, pressure, and flow valves.
Our address
Ximei Building, Zhongshan East Road, Qiaoxi District, Shijiazhuang City, Hebei Province
Phone Number
+8619103298301
nadia.laiye0909@gmail.com
Our production and equipment
40+
years
10000+
containers
20+
countries
FAQ – Your Questions Answered
Do you offer OEM customization for the 4WEH32 solenoid valve?
Yes. Provide your spool symbol drawing, port configuration, and coil voltage (12V, 24V DC, or 110V AC). We can adjust stroke length and spring force for special applications.
What is the typical lead time for this series?
Stock items: 2–3 business days. For non-standard spools or custom coils: 10–14 business days, including full testing.
How do you package the valves for international shipping?
Small quantity: individual carton with foam insert. Bulk orders: export-grade plywood case, palletized and shrink-wrapped. Every valve port is sealed against dust.
What warranty do you provide?
12 months against the Bill of Lading date. Covers manufacturing defects and premature wear under normal operating conditions.
How It Works – Spool Switching & Oil Flow Control
Inside the 4WEH32 series, a precisely ground spool slides within the valve body. When the solenoid is energized, the wet-pin plunger pushes the spool from its neutral center position to either the left or right switching position. This changes the connection between ports (P, A, B, T), directing hydraulic flow to extend or retract a cylinder, or rotate a motor.
The spool switching is spring-centered – release the solenoid, and the spool returns to neutral. No external pilot pressure needed for most configurations. For high-flow or high-pressure applications, optional hydraulic pilot assist is available.
