Shijiazhuang Laiye Import& Export Trading Co., Ltd. is one of the leading manufacturers and suppliers of sd8 sectional valve — 80 l/min manual control for flexible systems in China, also supports customized service. If you're going to wholesale high quality sd8 sectional valve — 80 l/min manual control for flexible systems made in China, welcome to get pricelist from our factory.
Why Sectional?

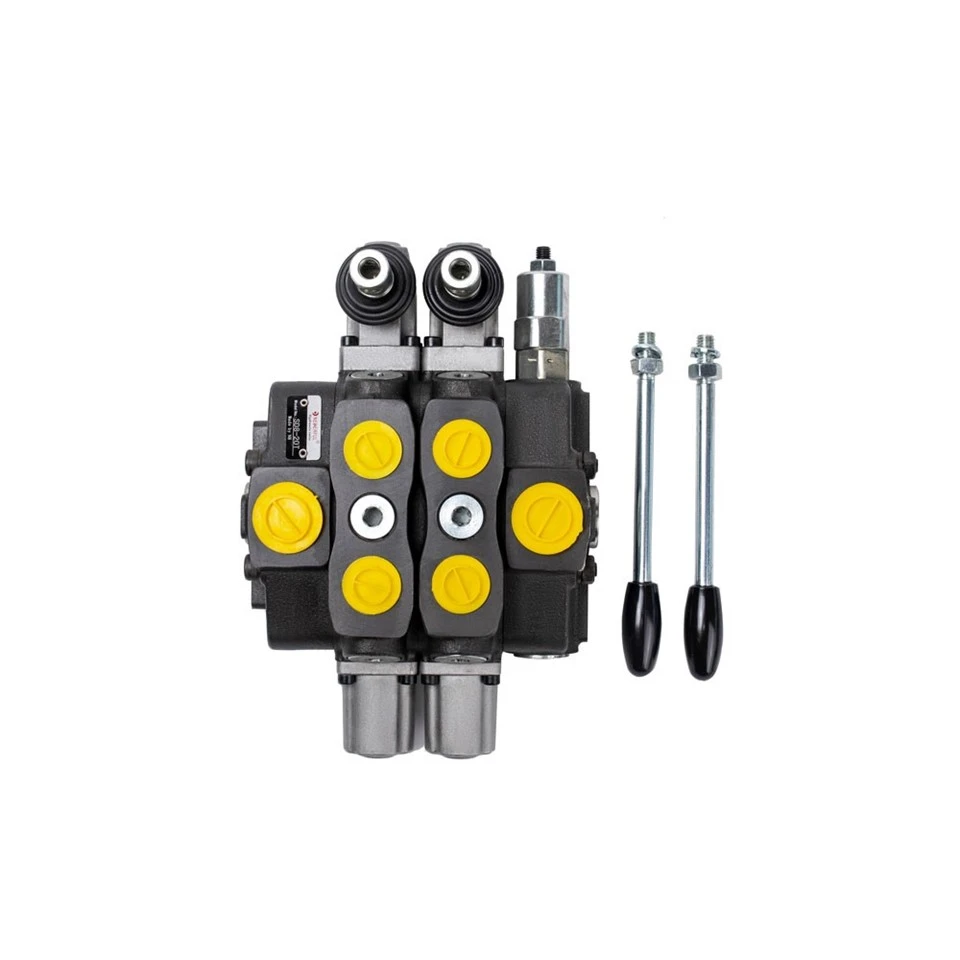

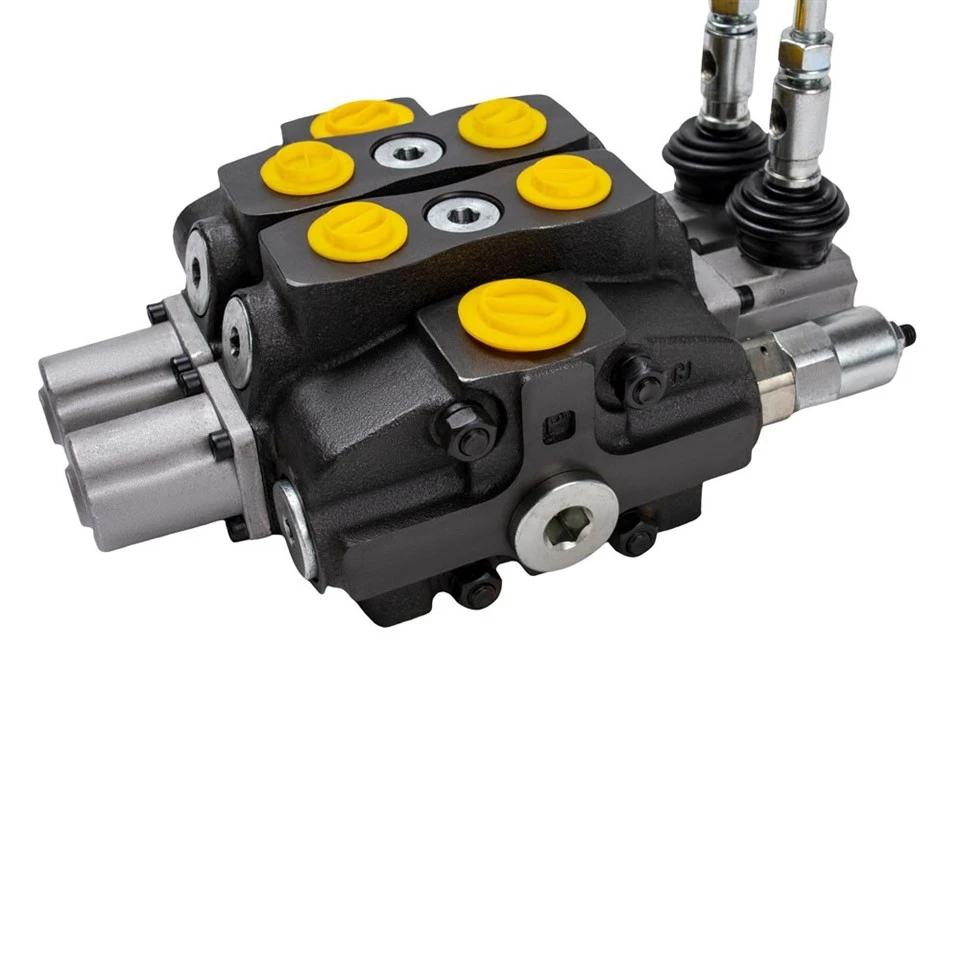

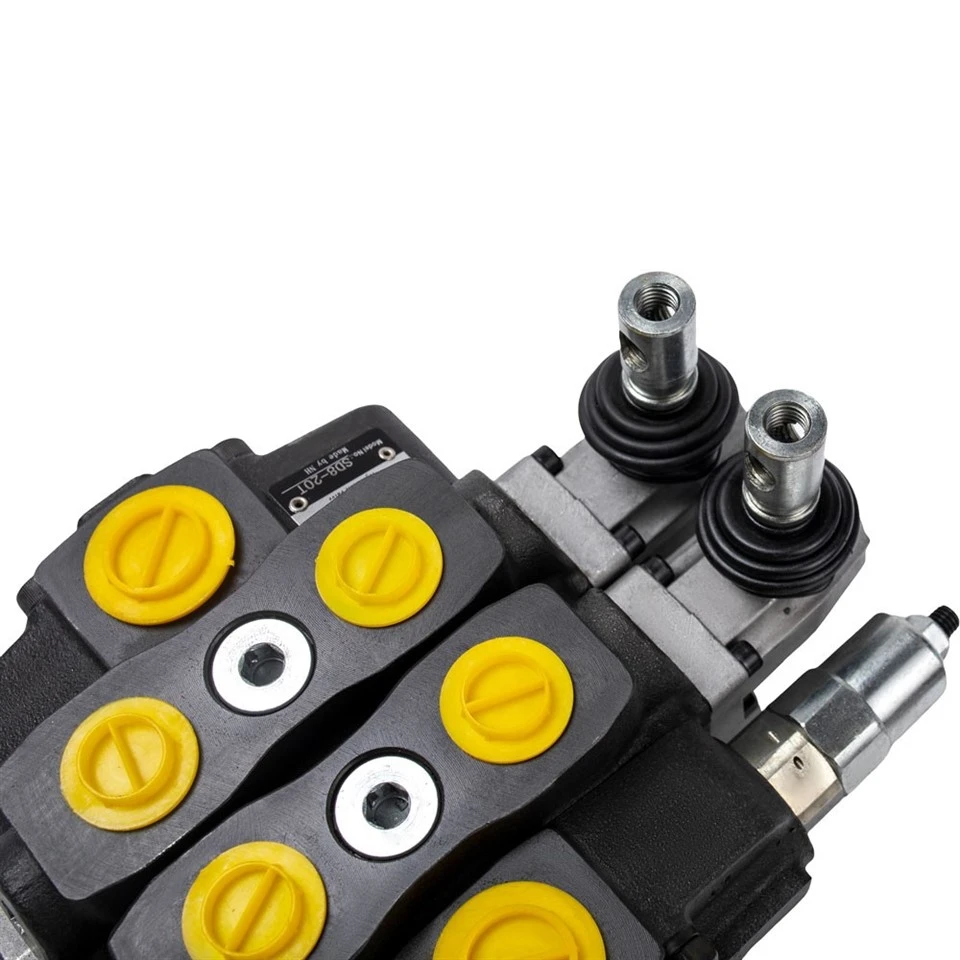

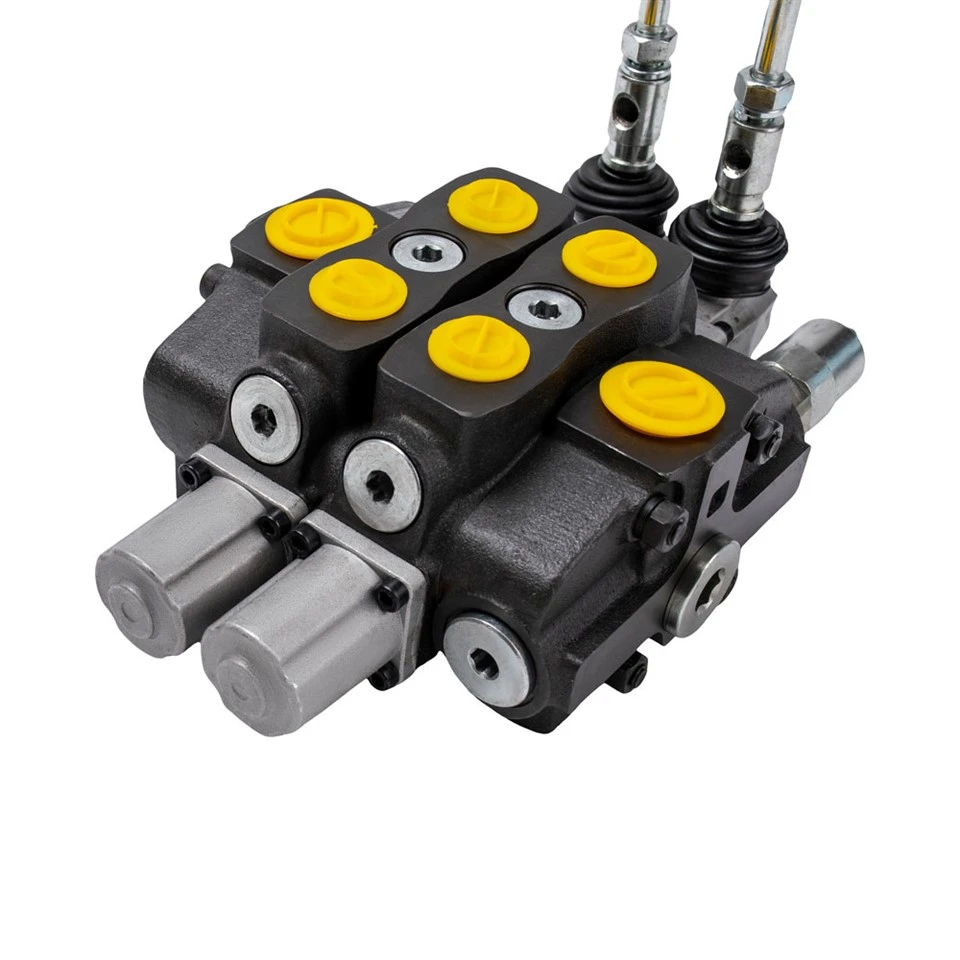

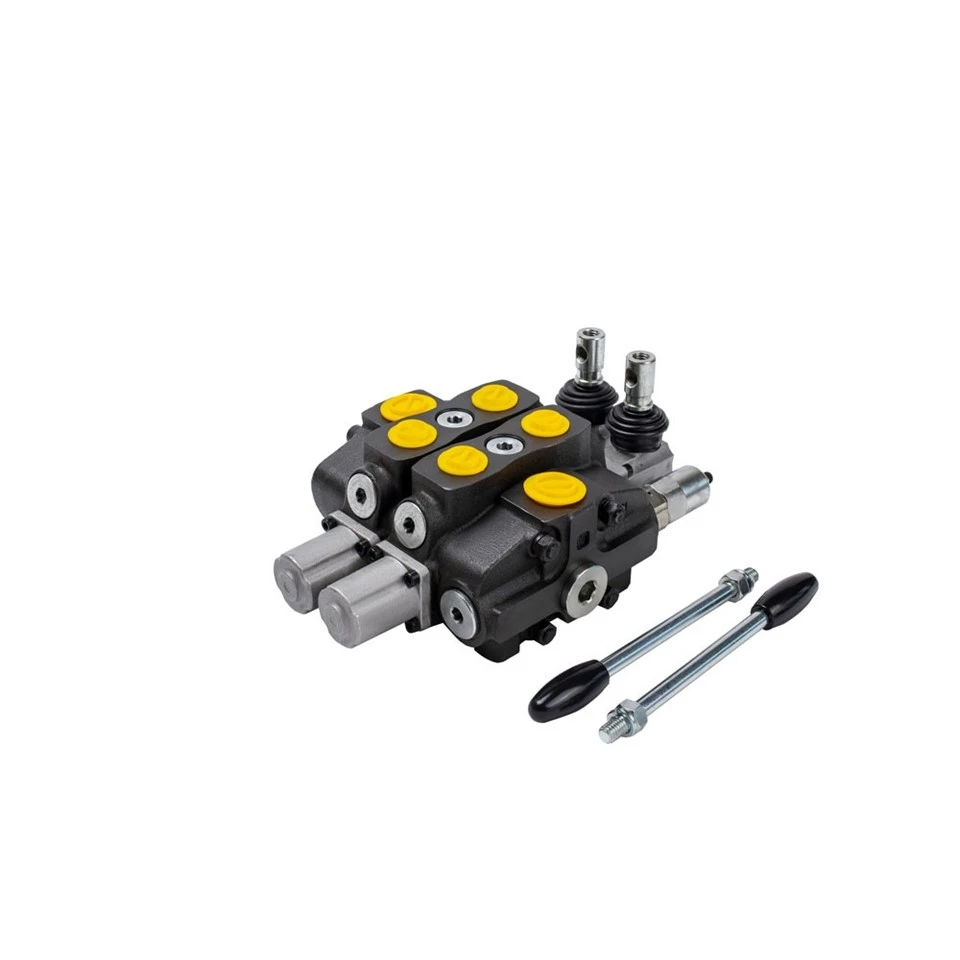

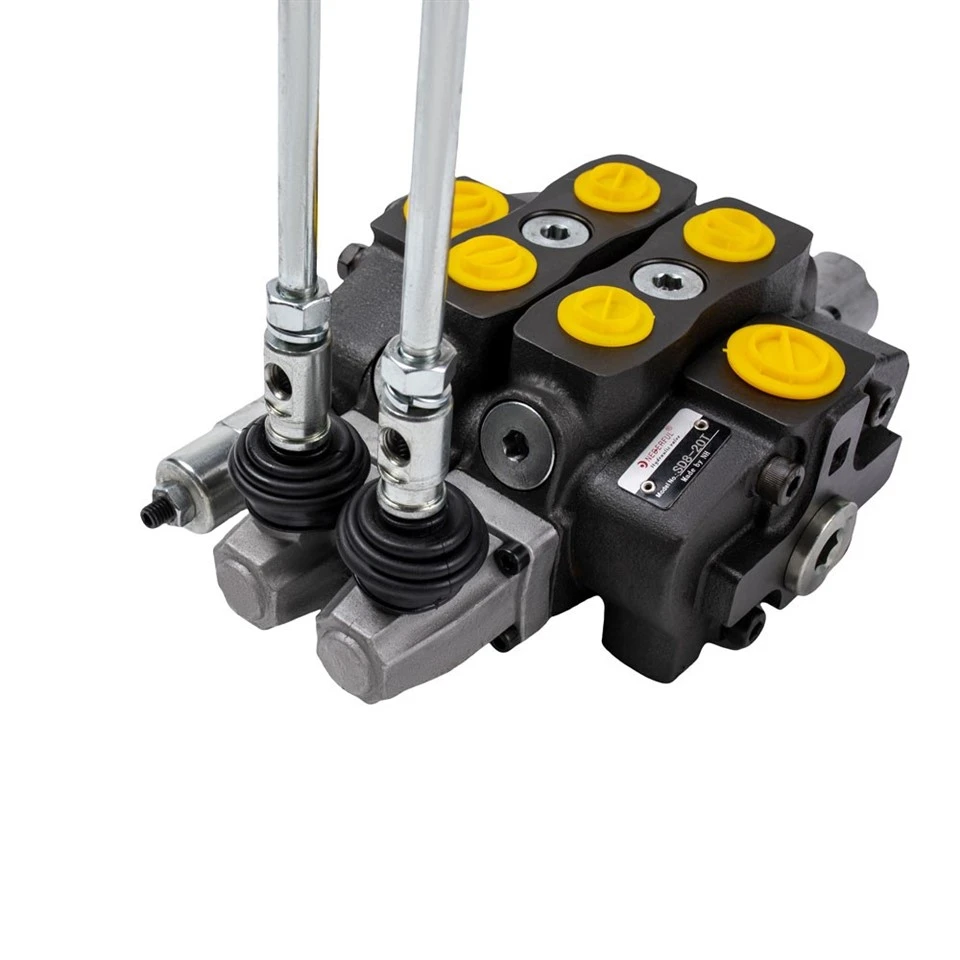

The SD8 is a sectional valve - sections bolt together into a stack, each controlling one function.
80 L/min at 315 bar. Available with 1 to 12 sections.
Here's the thing about building equipment: you never quite know what you'll need three years from now. Maybe a new attachment shows up. Maybe a customer asks for an extra function. Maybe the machine gets repurposed for a different job.
With a sectional valve, you're covered. Start with the sections you need today. Add more when the machine changes. You don't replace the whole valve - you just expand it. That's the difference between sectional and monoblock. One grows with you. The other locks you in.
For applications where flexibility matters, the SD8 Sectional Valve - 80 L/min Manual Control for Flexible Systems delivers.
A Closer Look
80 L/min - When 45 Isn't Enough
At 80 L/min, you're moving enough oil to handle bigger cylinders, heavier attachments, and faster cycles than the SD5 can manage. It's the flow that fits between the small stuff and the big stuff - a practical middle ground.
315 bar max pressure gives you headroom that the 250 bar valves don't. If your system runs at higher pressures, the SD8 handles it without breaking a sweat.
Sectional Design - Practical and Expandable
Each section has its own spool, springs, and detent. They bolt together into a stack. Need three functions? Use three sections. Need six? Add three more. The stack grows with your machine, not against it.
This isn't just about convenience. It's about protecting your investment. A sectional valve means you're not throwing away a perfectly good valve when your machine changes - you're just adding to it.
Surface Treatment
Phosphating. Passes 48-hour salt spray. Not paint - won't peel when bumped.
Internal Leakage
15 cc/min at 160 bar, 50°C. Same standard as the DCV series.
Where It's Typically Used
We've installed the SD8 Sectional Valve - 80 L/min Manual Control for Flexible Systems on all sorts of machines over the years. A few examples:
Small to Medium Wheel Loaders
Usually two to four sections - boom, bucket, steering, and maybe an auxiliary function. The 80 L/min flow pairs well with the gear pumps you find on machines in the 1-3 ton range. Operators notice the difference when stacking material; the boom comes up without that lag they'd gotten used to.
Compact Excavators
Arm, bucket, swing, travel, and attachments - four to six sections isn't unusual. On a machine like this, cycle time is money. The SD8 moves enough oil to keep the swing fast and the bucket responsive, even when you're running multiple functions at once.
Agricultural Implements
Small balers, hay equipment, and compact tractor attachments. Farm work is seasonal - you run hard when the weather holds, and you don't stop for breakdowns. The SD8 holds up to long days without thermal drift.
Light Industrial Equipment
Lift tables, small presses, material handling systems. These don't need fancy controls. They need to start, stop, and keep running. The SD8 does exactly that.
Forklifts and Material Handling
Mast tilt and side-shift functions. 80 L/min moves the mast faster than 45 L/min does, which matters in busy warehouses where every second counts.
Specifications
All technical data sourced from the SD8 product datasheet.
| Parameter | Value |
|---|---|
| Control method | Manual |
| Pressure medium | Mineral oil based hydraulic oil |
| Nominal flow | 80 L/min |
| Viscosity range | 12–400 CST |
| Operating pressure | 315 bar (35 MPa) |
| Internal leakage | 15 cc/min @160 bar, 50°C |
| Ambient temperature | -40°C to +80°C |
| Valve structure | Sectional |
| Surface treatment | Phosphating |
| Valve sections | 1 to 12 |
| Rustproof level | 48h neutral salt spray test |
Options
Control: manual / pneumatic pilot / electro-hydraulic pilot
Lever style: standard or custom
Customization
Valve marking, packaging, shipping marks, manual language - all customizable for OEM orders.
About Us
Shijiazhuang Laiye Import & Export Trading Co., Ltd., part of Hebei Wendefu Hydraulic Technology Co., Ltd., has been manufacturing hydraulic components since 1988 - over 35 years of experience. We are a factory, not a trading company, with around 200 employees and a full in-house production process covering machining, assembly, testing, and phosphating. Every valve is individually tested, not spot-checked, with test data filed against its serial number for full traceability. We export to more than 20 countries, hold ISO 9001 certification, and offer OEM customization, technical support, and a 12-month warranty. Material certificates, test reports, and certificates of origin are available upon request.
Production Process
Raw Material Inspection
Iron castings and steel arrive with mill certificates. We verify each batch through spectral analysis for material composition and inspect for internal defects. Any material that doesn't meet spec gets rejected at the door - we don't compromise on raw materials.
↓
Precision Machining
Each valve body goes to the CNC machining center. Because the SD8 is a sectional valve, every working section is machined individually before assembly. We hold tolerances to microns - the kind of precision that makes the difference between a valve that seals and one that seeps.
↓
Heat Treatment
Once machined, the bodies go through heat treatment. This relieves internal stress from the cutting process, improves wear resistance, and locks in dimensional stability so the valve holds its geometry over years of use.
↓
Spool Lapping
Each spool is precision-ground, then measured against its matching bore. Based on the actual clearance, we lap it to final spec. This step determines internal leakage performance - it's what keeps leakage at 15 cc/min instead of 50.
↓
Surface Treatment
The valve bodies are phosphated. This isn't paint - it's a chemical conversion coating that bonds at the molecular level. If the valve gets knocked, the coating stays. No peeling. We salt-spray random samples to confirm they pass 48 hours.
↓
Assembly
Working sections, inlet, and outlet end cover get stacked and pulled together with through-bolts. We use seals from trusted suppliers and torque every bolt to spec. Each assembler stamps their work - if something comes up later, we know who built it.
↓
Pressure Testing
Every valve gets tested. Not every tenth one - every single one. We check neutral leakage, pressure drop across each section, lever effort, and external leaks under pressure. Test data is filed against the serial number.
↓
Final Inspection
One last check - appearance, marking, packaging. If it passes, it goes to inventory. If it doesn't, it goes back. We don't ship valves we wouldn't use ourselves.
FAQ
Q: Can the SD8 be used with a closed-center hydraulic system?
A: Different spool types are available for different circuit requirements. Specify your system type when ordering so we supply the correct spool configuration.
Q: Can I order the SD8 with custom lever length or shape?
A: Yes. For OEM customers, we offer custom lever shapes, lengths, and handle grips. Minimum quantity applies.
Q: Can the SD8 be used in explosive environments?
A: The manual version has no electrical components, so it's suitable for many hazardous environments. For pneumatic or electro-hydraulic versions, check component ratings.
Q: How do I check for internal leakage?
A: Watch the cylinder. If it drifts in neutral, internal leakage may have increased. We can test the valve at our facility to confirm the leakage level.
Q: Can the SD8 be repaired if it develops a problem?
A: Yes. We offer inspection, spool re-lapping if needed, seal replacement, and re-testing. Contact Cathy for return instructions and a repair quote.
Q: Can I use the SD8 with a motor instead of a cylinder?
A: Yes. The valve controls flow direction, so it works with both cylinders and hydraulic motors.
Q: Is the SD8 compatible with SD5 sections?
A: No. SD5 is a monoblock - one solid casting. SD8 is sectional - sections bolt together. The construction is completely different. SD8 sections work only with other SD8 sections.
