Products Description

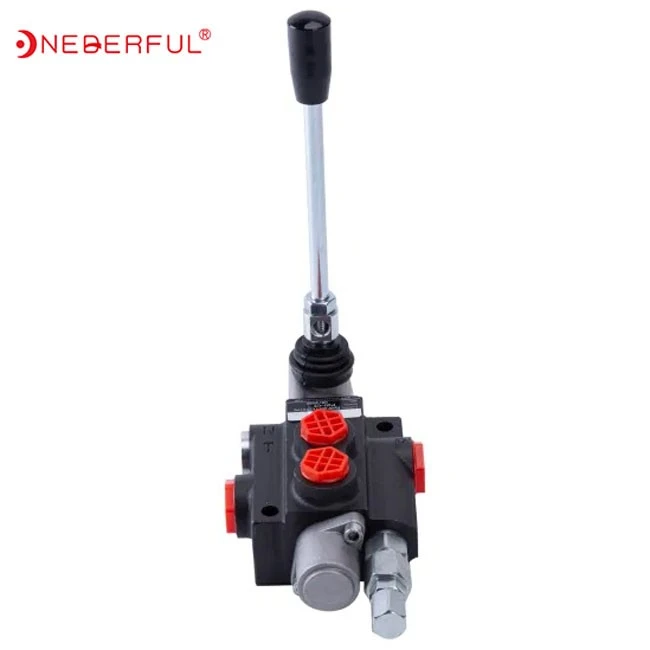

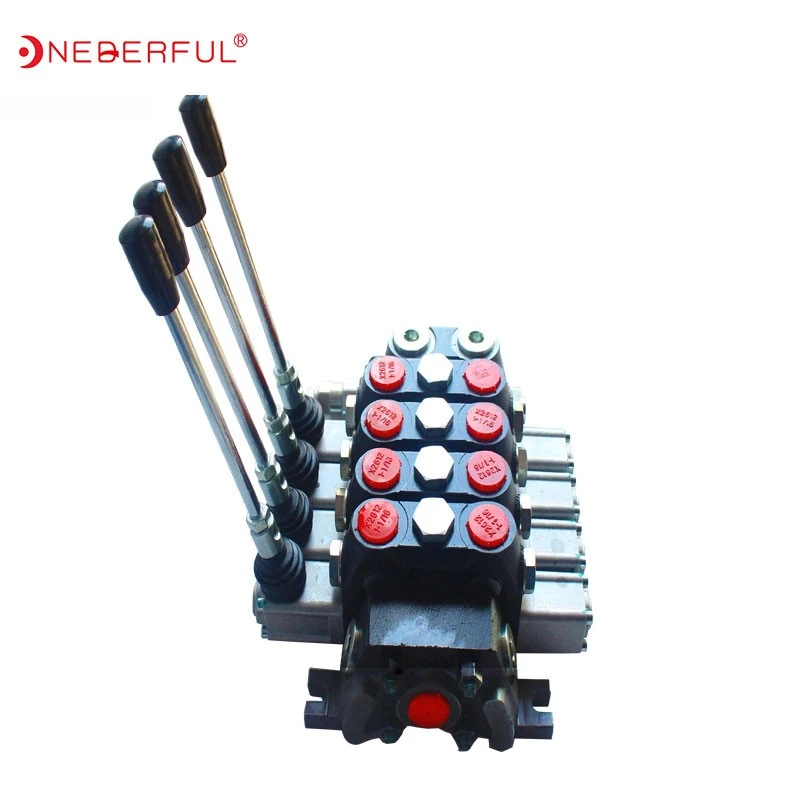

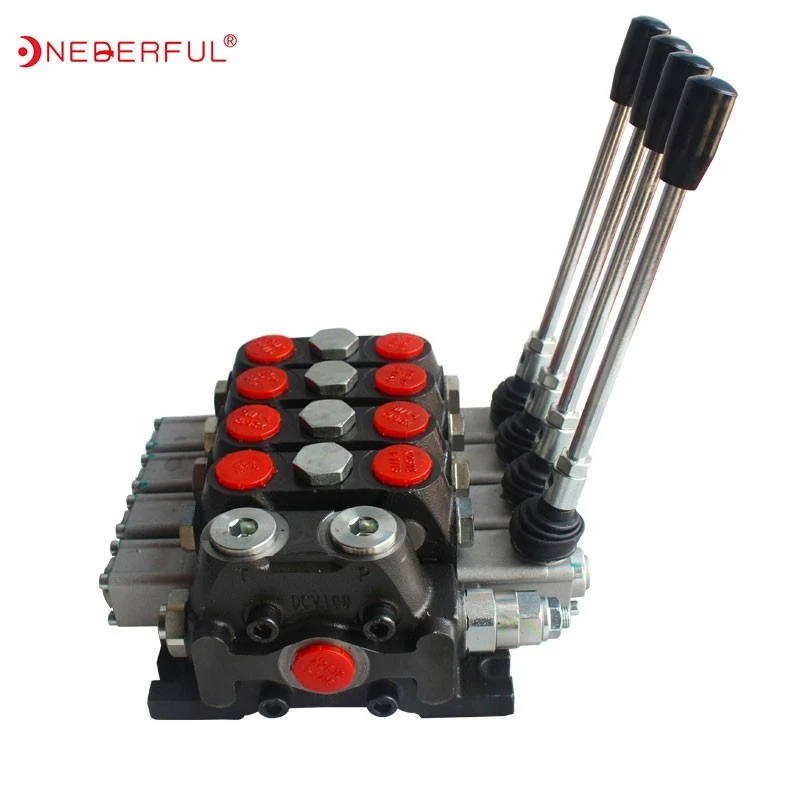

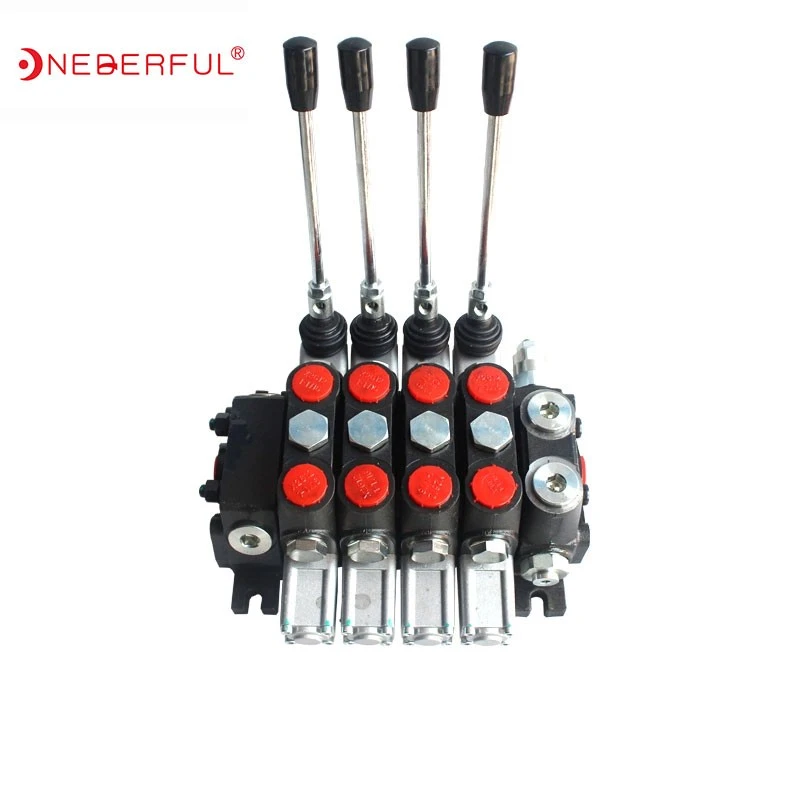

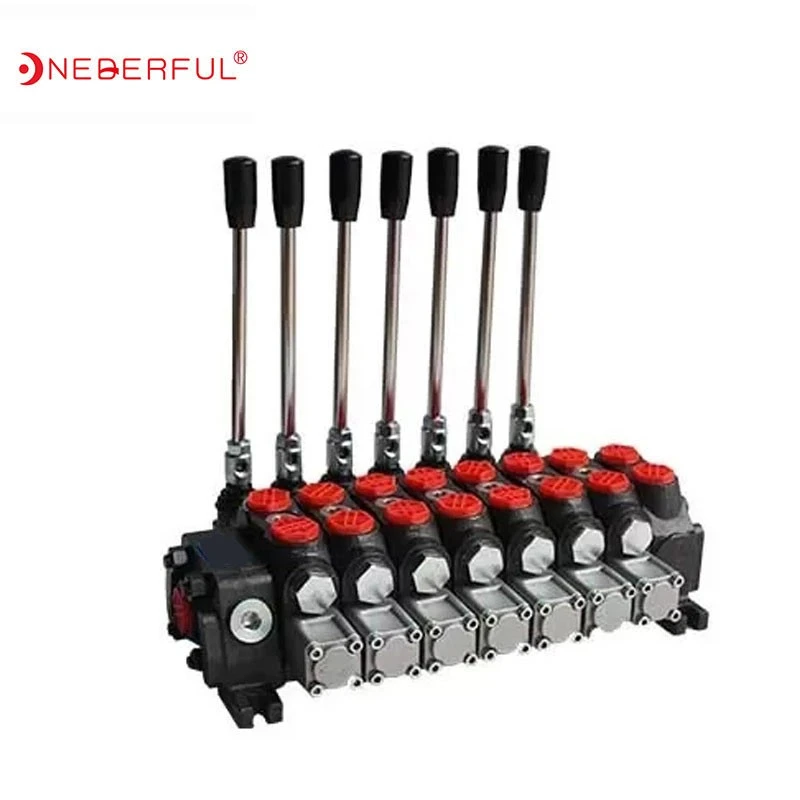

The DCV100 hydraulic pressure valve is a versatile sectional directional control valve featuring a rated flow of 100 L/min, a maximum working pressure of 350 bar, and a configurable assembly of 1 to 12 sections. Its modular sectional design allows for flexible combinations to meet the multi-function control requirements of various types of equipment.
This sectional structure offers excellent scalability and ease of maintenance: additional functions can be implemented by simply adding valve sections without replacing the entire valve assembly, and individual sections can be removed for servicing without disrupting the operation of other sections. Control options include manual, hydraulic, electric, and electro-hydraulic actuation; spool functions can be selected based on system requirements, and overload or anti-cavitation valves can be installed on individual sections.
With an operating temperature range of -40°C to 80°C, the DCV100 is widely used in equipment such as small-to-medium excavators, skid-steer loaders, forklifts, aerial work platforms, harvesters, and tractors. It is particularly well-suited for hydraulic systems that require complex multi-function control and potential future functional expansion.
Company Information
Established in 1988 and affiliated with Hebei Wonderful Hydraulic Technology Co., Ltd., Shijiazhuang Laiye Import & Export Trading Co., Ltd. operates a factory in Xingtai and stands as a professional manufacturer of hydraulic valves, integrating R&D, production, and sales. The company maintains a comprehensive production chain-encompassing casting, precision machining, surface treatment, and assembly/testing-entirely within its own facilities, utilizing CNC equipment for key processes. With a workforce of over 200 employees, we typically deliver bulk orders within 10 to 14 working days. Every product undergoes rigorous pre-delivery inspections, including individual tests for pressure resistance, internal leakage, and flow performance; we ensure 100% inspection and compliance with anti-corrosion standards. Holding ISO9002 certification, the company ensures full traceability throughout the production process. Our products are exported to over twenty countries and regions-including Russia, Europe, the Middle East, South America, and Southeast Asia-with an annual export volume exceeding 10,000 containers and flexible logistics options. We provide dedicated, end-to-end service ranging from model selection consultation to after-sales support; in short, you can choose us with confidence.
Product Advantages
The advantages of the DCV100 hydraulic pressure valve
1. Moderate flow rate, broad application range
The 100 L/min flow rate hits the "sweet spot"-offering the capacity to power larger equipment than low-flow valves, yet at a more affordable price point than high-flow models. Suitable for a wide range of machinery-including small-to-medium excavators, skid-steer loaders, forklifts, and aerial work platforms-a single valve model covers multiple equipment types.
2. Sectional design for hassle-free expansion.
Need to add equipment functionality? Simply add a valve section-there's no need to remove and replace the entire valve assembly. The advantage of a sectional design is that it grows with your equipment, and the cost of adding a single section is far lower than replacing the whole valve.
3. Reliable Inter-Section Sealing
O-rings are used to seal the interface between sections, resulting in minimal leakage. The sections are clamped together in series, ensuring a tight fit that prevents oil seepage even after prolonged use.
4. High flow capacity and low pressure loss
The internal flow path is designed for smooth flow, resulting in minimal resistance and low pressure drop as the fluid passes through. At the same flow rate, the system generates less heat and achieves higher energy efficiency.
1.Simply let us know your requirements-such as operating conditions, model, number of banks/units, control method, and quantity. Provide as much information as you can, but don't worry if you aren't sure which model to choose; we can advise you on the best option.
2.Once we receive your requirements, we will prepare a proposal and a quote; for custom orders, we will provide drawings for your approval first. For first-time clients, we recommend testing a sample to ensure everything meets your needs before placing a bulk order. During production, every unit undergoes multiple inspections before leaving the factory. You can choose the shipping method-sea freight, air freight, or express delivery are all available.
3.We also follow up on installation and usage after delivery, as we provide comprehensive after-sales support. Feel free to contact our sales team at any time; we guarantee a response on the same day.
Phone Number
+8615076180506
info@wendefuvalve.com
FAQ
Q: What kind of valve is the DCV100, and what are its key specifications?
A: The DCV100 is a sectional directional control valve featuring a rated flow of 100 L/min and a maximum working pressure of 350 bar. It is available in configurations ranging from 1 to 12 sections and operates within a temperature range of -40°C to +80°C. It utilizes a modular sectional design in which each section is cast independently and the sections are bolted together to form a complete valve assembly.
Q: What kind of equipment is the DCV100 suitable for?
A: It is suitable for equipment such as small-to-medium excavators, skid-steer loaders, forklifts, aerial work platforms, harvesters, and tractors. With a flow rate of 100 L/min, it occupies a "sweet spot" in the range: it can handle larger equipment than low-flow valves while being more cost-effective than high-flow valves.
Q: Can the DCV100 be interchanged with valves of the same class from imported brands?
A: Yes, the mounting dimensions and port specifications can be configured to be interchangeable with those of mainstream imported brands; for replacement purposes, please provide the original valve model and installation drawings to the sales team for verification.
Q: What causes a valve to fail to shift or operate sluggishly?
A: Check three things first: Is the oil pump supplying oil normally? Is the oil temperature high? Is the oil dirty? If none of these are the issue, the problem is usually a stuck or worn valve spool. Clean the spool if it is stuck; replace the part if it is worn.
Q: What should be done if oil is seeping between the valve sections?
A: First, check if the connecting bolts are loose; if they are, tighten them to the specified torque. If the bolts are fine, the inter-section seal has likely aged and simply needs replacing. To replace it, remove the specific valve section, install a new seal, and reassemble the unit.
